Public AC

PDSPE

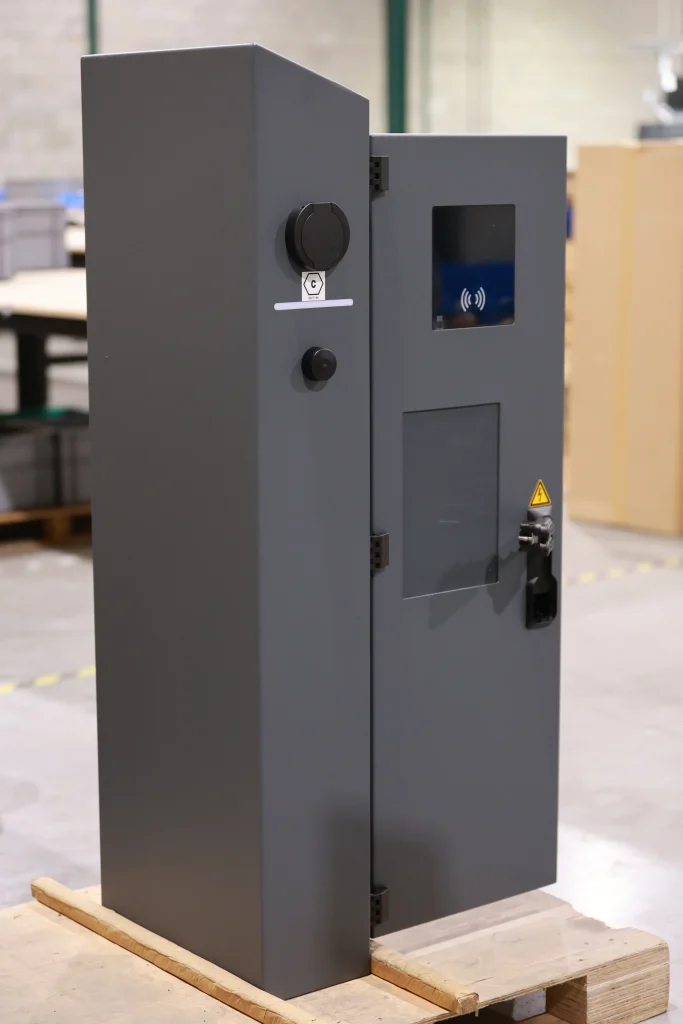

The PDSPE is our flagship public AC charging pole, delivering reliable 22 kW dual-socket charging with a 7″ high-brightness display, multi-method authentication, and OCPP 2.0.1 smart charging. Designed, manufactured, and maintained by Evonity.

Request a quote
Download datasheet

Technical Specifications

Full electrical, communication, and environmental specs.

Electrical

  • Sockets 2x Type 2 (IEC 62196-2)
  • Max Power 22 kW per socket (3-phase)
  • Input 230VAC/400VAC, 32A per phase
  • Meter MID certified 4-quadrant

Communication

  • Protocol OCPP 2.0.1
  • Connectivity 4G (dual)
  • Wi-Fi, Ethernet
  • Display 7" IPS
  • 1000 nits
  • 1024x600

Enviroment

  • Protection IP54, IK10
  • Temperature -25°C to +50°C
  • Monitoring Tilt sensor
  • Temp/humidity
  • Anti-condensation
  • Door contact

Casting

  • Material Aluminum (79% recycled)
  • Dimensions 1500x300x300mm
  • Weight ~35kg

Payment

  • Authentication RFID
  • QR Code
  • Plug & Charge
  • EMV

Key Features

Dedicated field service engineers and a direct feedback loop ensure fast resolution and continuous product improvement.

22 kW Dual Socket

Two Type 2 sockets at 22 kW each for simultaneous charging.

IP54 / IK10

Built to withstand harsh outdoor conditions and vandalism.

OCPP 2.0.1

Full smart charging with Advanced Security and ISO 15118 profiles.

Smart Monitoring

Tilt, temperature, humidity, and anti-condensation sensors built in.

Field Serviceable

Modular design enables fast component replacement on-site.

Custom GUI

Fully customizable 7" display templates to match your brand.
